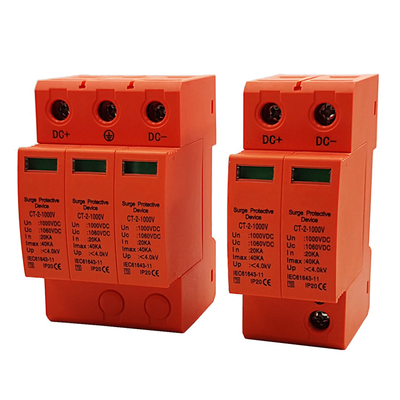

DC 1000V 1500V Photovoltaic Voltage Surge Protective Device Protection Power Supply System of Lightning Surge Current Low Voltage Lightning Arrester YIKA SPD 20KA 2P 3P 4P

1.0 Pieces
DC 1000V 1500V Photovoltaic Voltage Surge Protective Device Protection Power Supply System of Lightning Surge Current Low Voltage Lightning Arrester YIKA SPD 20KA 2P 3P 4P
Características Galeria Descrição de produto Peça umas citações
Model Number: DCSPD-40
Product name: Surge Protective Device
Application: Protecting power supply system from lightning surge current
Color: orange
Rated Voltage: DC1000V
Pole: 1P 2P 3P 4P
Certificate: CE RoHS
Material: Fiberglass Reinforced Plastic
Package: Carton Package
Informação básica
Certificação: CE RoHS
Model Number: DCSPD-40
Condições de Pagamento e Envio
Packaging Details: BOX + CARTON
Supply Ability: 1000000 Piece/Pieces per Year
Descrição de produto

YIKA Low Voltage Photovoltaic Lightning Protector SPD 20KA 2P 3P 4P DC 1000V 1500V Voltage Surge Protective Device

Product Description

Surge protector, also called lightning protector, is an electronic device that provides safety protection for various electronic equipment, instruments, and communication lines. When a spike current or voltage is suddenly generated in the electrical circuit or communication circuit due to external interference, the surge protector can conduct and shunt in a very short time, so as to prevent the surge from damaging other equipment in the circuit. The protection of indirect lightning and direct lightning effects or other transient overvoltage surges is suitable for the requirements of surge protection in households, tertiary industries and industrial fields.
The DCSPD40 series surge protection device is used in the photovoltaic power supply network to protect and resist the impact of lightning and high energy on the equipment. This product must be installed in a parallel DC network.

Main Technical Parameters:

Product Name: Surge Protection Device(SPD)
Product Number: DCSPD-40
Pole: 1P 2P 3P 4P
Standard: EN 50539-11
Category IEC/EN: IECⅡ/EN2
Open Voltage Uoc Max: 1000V 1500V DC
Max Continuous Operational Voltage Uc: 1000V 1500V DC
Nominal Discharge Current In(8/20)Us: 20KA
Maximum Discharge Current Imax(8/20)Us: 40KA
Voltage Protection Level Up: ≤3.8KV
Response Time: ≤25ns
Operating State/Fault Indication: Green/Red
Remote Signalling Contact(Optional) Max.Working Voltage(V): 30V DC
Max.Working Current(A): 1A
Wire  Hard Cable(mm²): 4-25
Flexible Cable(mm²): 4-16
Terminal Screws: M5
Torque Main Circuit: 2.5
Remote Contact: 0.25
Degree Of Protection: IP20
Operating Temperatu Re Range(TU): -40℃~+80℃
For Mounting On: TH35-7.5/DIN35
Relative Humidity: 30%~90%
Weight(kg): 0.36


Detailed Images

Product Overviews

 Product Features:
1.) Suitable for all photovoltaic DC systems
2.) Prewired modular complete unit,consisting of a base part and plug-in protection modules
3.) Plug-in protection module,easily installation and maintainance
4.) High energy varistor,response time less than 25 nanosecond
5.) Optional remote signalling contact(FM) for monitoring device (floating changeover contact)
6.) Din rail mounting TH35-7.5/DIN35
7.) Gomply with:EN 50539-11

Wiring Method:

Principal Drawing:
