Lightning Arrester 3kV/Surge Arrester 10kA/Substation YH10W5-3

1 Piece
Lightning Arrester 3kV/Surge Arrester 10kA/Substation YH10W5-3
Características Galeria Descrição de produto Peça umas citações
Model Number: YH10W5-3
Key word: lightning arrester
Color: Grey
Informação básica
Model Number: YH10W5-3
Condições de Pagamento e Envio
Packaging Details: Carton
Supply Ability: 500 Piece/Pieces per Day
Descrição de produto

1.Lightning arrester detail technical parameter

TypeYH10W5-3/8.14/10µS High current impulse kA100
Rated voltage---------kV3Lightning impulse withstand kV60
MOCV ----------------kV2.55Power frequency voltage withstand(dry/wet)kV10
Nominal Current-------kV100.1S TOV--------------kV3.6
Residual voltage of steep impulse----at 5kA(kV)9.21S TOV----------------kV3.45
8/20µS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV)8.510S TOV---------------kV3.3
Residual voltage of switching impulse current kV (peak value)----at 1kA (kV)6.31200S TOV-------------kV3
1mA D.C reference voltage (kV)4.24Creepage distance ----mm272
Line discharge level1Material employed in series non-linear resistorZinc Oxide
2mS long duration impulse current A400Material of housingsilicon rubber


2.Lightning Arrester  Description


The lightning arrester is the most advanced over-voltage protector. It is widely used as protective

devices against switching and lightning over voltages in power electrical systems such as power transformers ,

distributors,generators, compensation capacitors. Its core component--resistance slice adopts the material

including zinc oxide and many kinds of metal oxides, compared with traditional silicon-carbide arrester,

 its volt-ampere characteristic of resistance slice has been improved to great degree, as well as the

current-transmit ability of resistance slice, as a result, the capability of arrester has been improved basically

 and thoroughly.



3.Lightning Arrester Drawing

























































4.Lightning arrester running condition


Low Voltage Lightning Arrester
Working condition:Environment temperature: -40--+40 degree
48HZ<Rated frequency<62HZ
Power frequency voltage should not be more than continuous running voltage
Max wind speed should be less than 35m/s
Earthquake intensity should be less than 7 degree
If used in contamination area, should be noted in advance.



5.Lightning Arrester shipping details


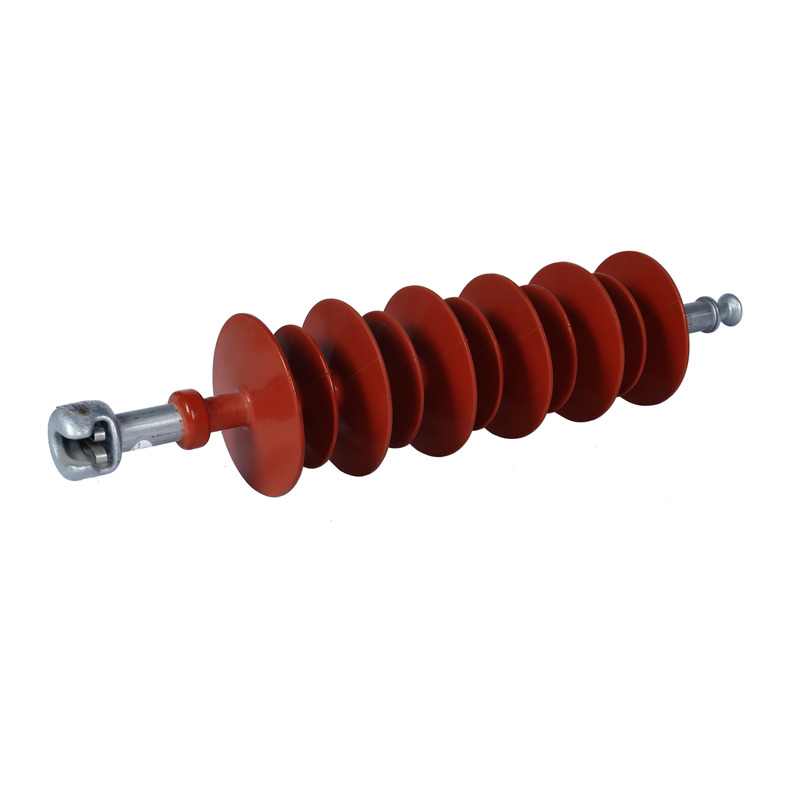

Product Name:3kV,10kA ,Lightning arrester(L,A)Item No:YH10W5-3/8.5
Size:425mmX145mmX110mm with 3pieces per cartonPacking:carton with polyfoam insert parts
MOQ:1setsproduction capacity: 500 sets per day
Payment Terms:T/T 30% before shipment,balance 70% L/C after received B/LWeight:1.8kg/carton
Trade Terms:FOB,CIF(or we can discuss details)Loading Port:Ningbo/ Shanghai(Or as customer requirement)
Loading Ability:   20'GP4731sets



6.Lightning Arrester Picture




7.Lightning Arrester Shipping
